Air-Con 2 Zone 18000 BTU 22 SEER 230v Multi Split Air Conditioner
Air-Con 2 Zone 18000 BTU 22 SEER 230v Multi Split Air Conditioner
Couldn't load pickup availability

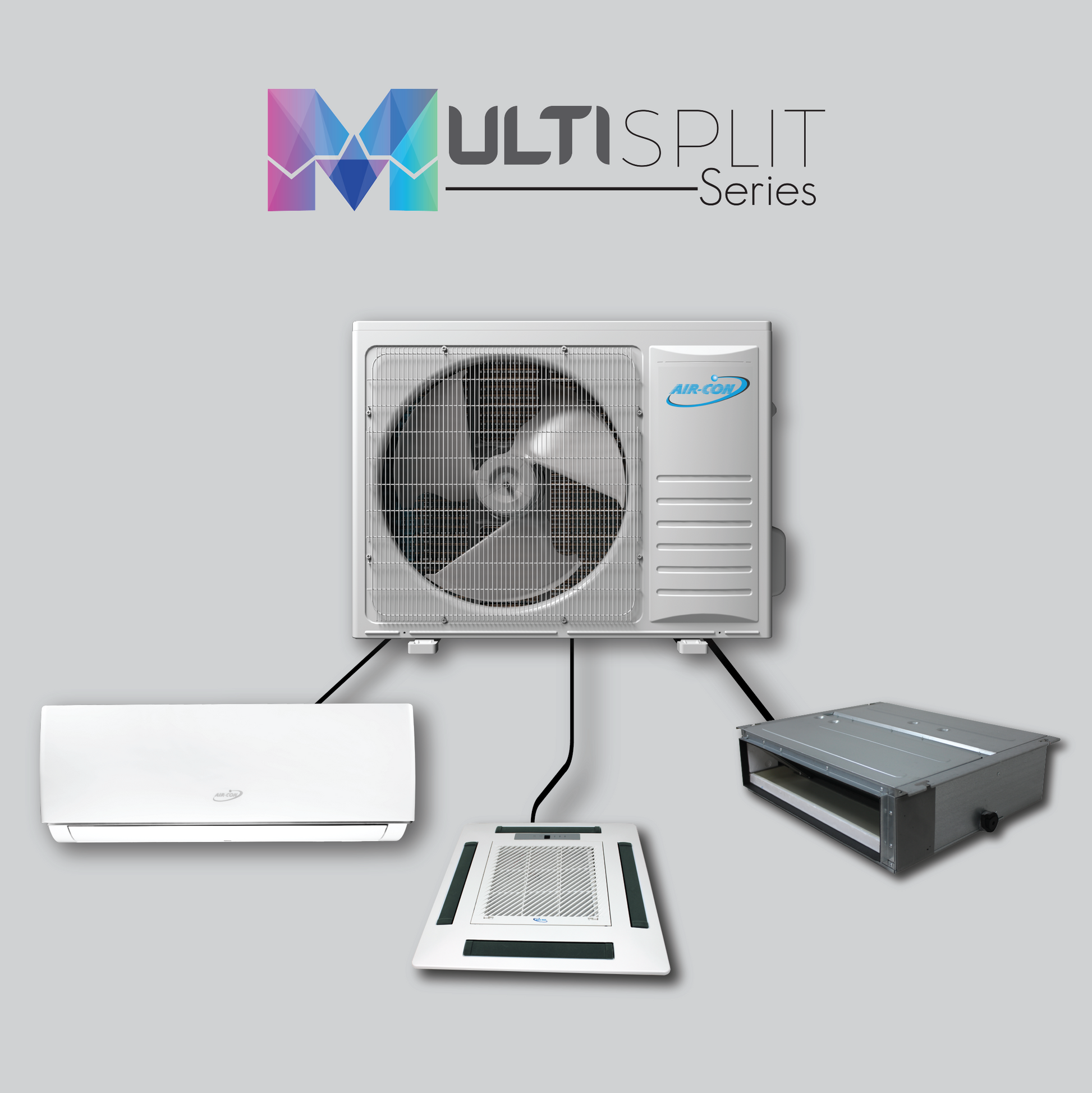

Enjoy the flexibility to cool or heat up to 2 zones with the Air-Con Multi-Split 18000 BTU air conditioner. Mix & match from wall mounts, ceiling cassette or concealed duct type indoor units.
This package includes: Outdoor Unit (condenser), 2 Indoor Units (evaporator), and remote control. Installation cable and wires sold separately.
Compatible Indoor Units | Two Unit Combinations |
Wall: 9K & 12k | 9 + 9 |
Ducted: 9K & 12k | 9 +12 |
Cassettes: 9K & 12K |

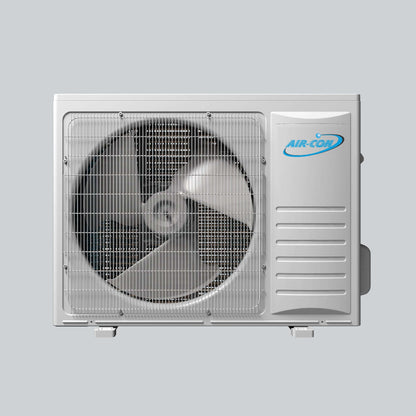

OUTDOOR UNIT SPECS
Note: Licensed HVAC technician required for proper installation and maintenance.
Model |
AMSCI4H4S18 |
Voltage/ Frequency/ Phase |
208/230 - 60 Hz - Single Phase |
Cooling Capacity | 18000 |
Heating Capacity | 18000 |
Watts | 1440 |
Amperage | 6.5 |
Operating Ambient Temperature | 14° F Cooling / -13° F Heating |
Outdoor Unit Dimensions | 33-7/8" x 26-3/8" x 12-1/4" |
Lineset Size | 1/4" & 3/8" |
9K INDOOR UNITS
9,000 BTU COMPATIBLE UNITS

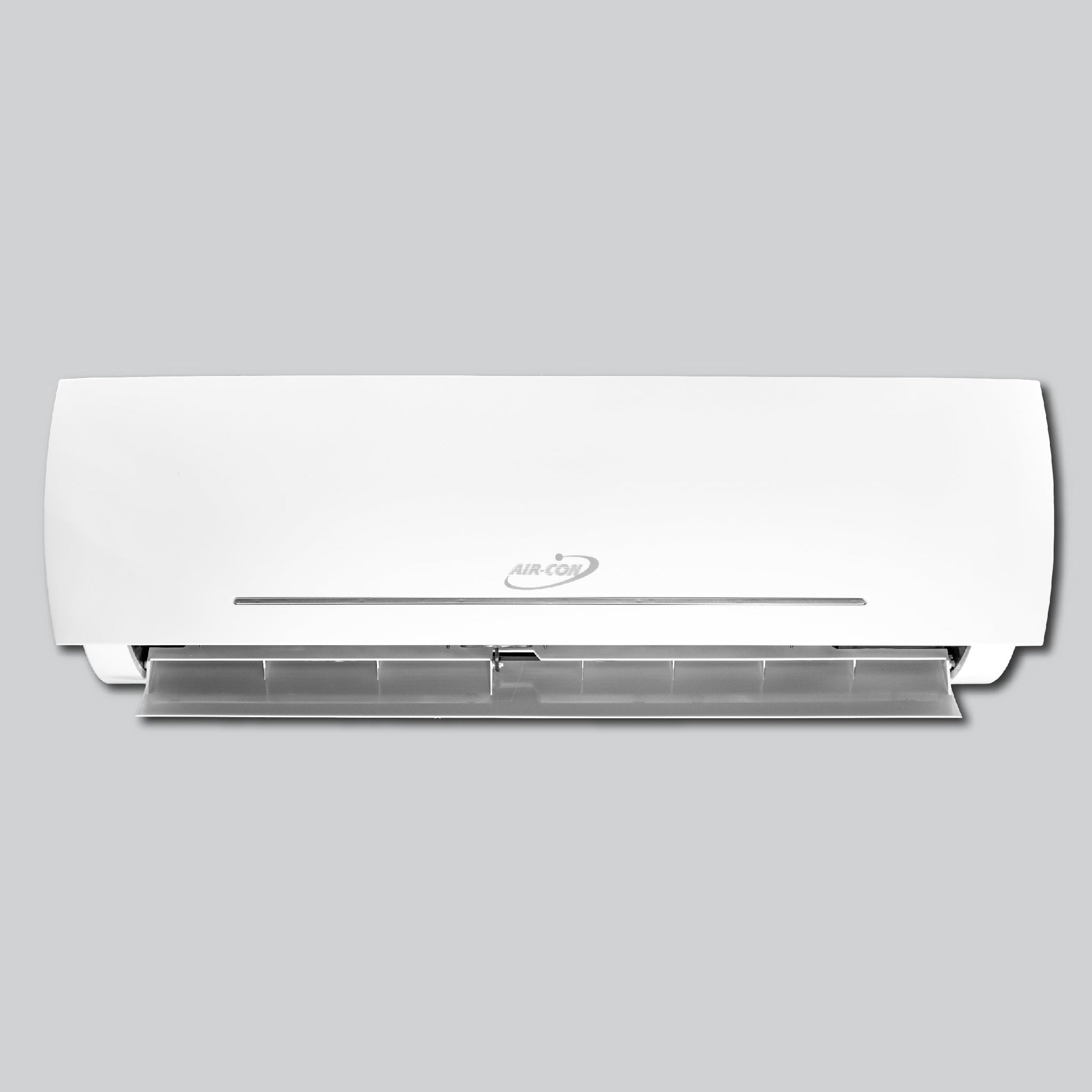

Wall Mounted
Model |
ABXEM4H4S09 |
Voltage/ Frequency/ Phase |
208/230 - 60 Hz - Single Phase |
Cooling Capacity | 9000 |
Heating Capacity | 9000 |
Watts | 2638 |
Amperage | 0.11 |
Unit Dimensions | 37-3/8" x 10-3/4" x 8-1/8" |
Lineset Size |
1/4" & 3/8" |

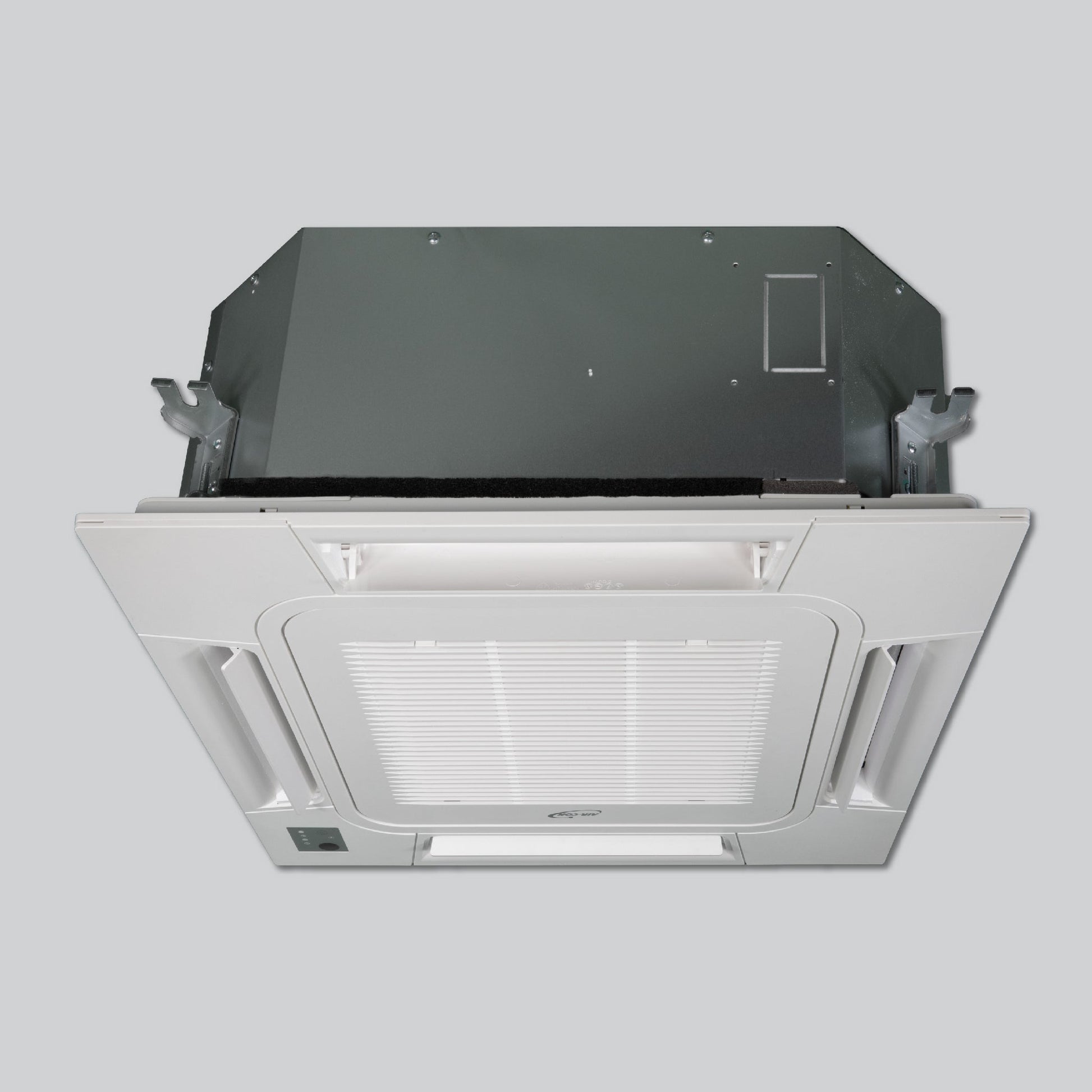

Ceiling Cassette
Model |
ASLEC4H4S09 |
Voltage/ Frequency/ Phase |
208/230V - 60Hz - 1 phase |
Cooling Capacity |
9000 |
Heating Capacity | 9000 |
Watts | 2638 |
Amperage | 0.25 |
Indoor Unit Dimensions | 22 7/16" x 8 7/16" x 22 7/16" |
Lineset Size | 1/4" & 3/8" |

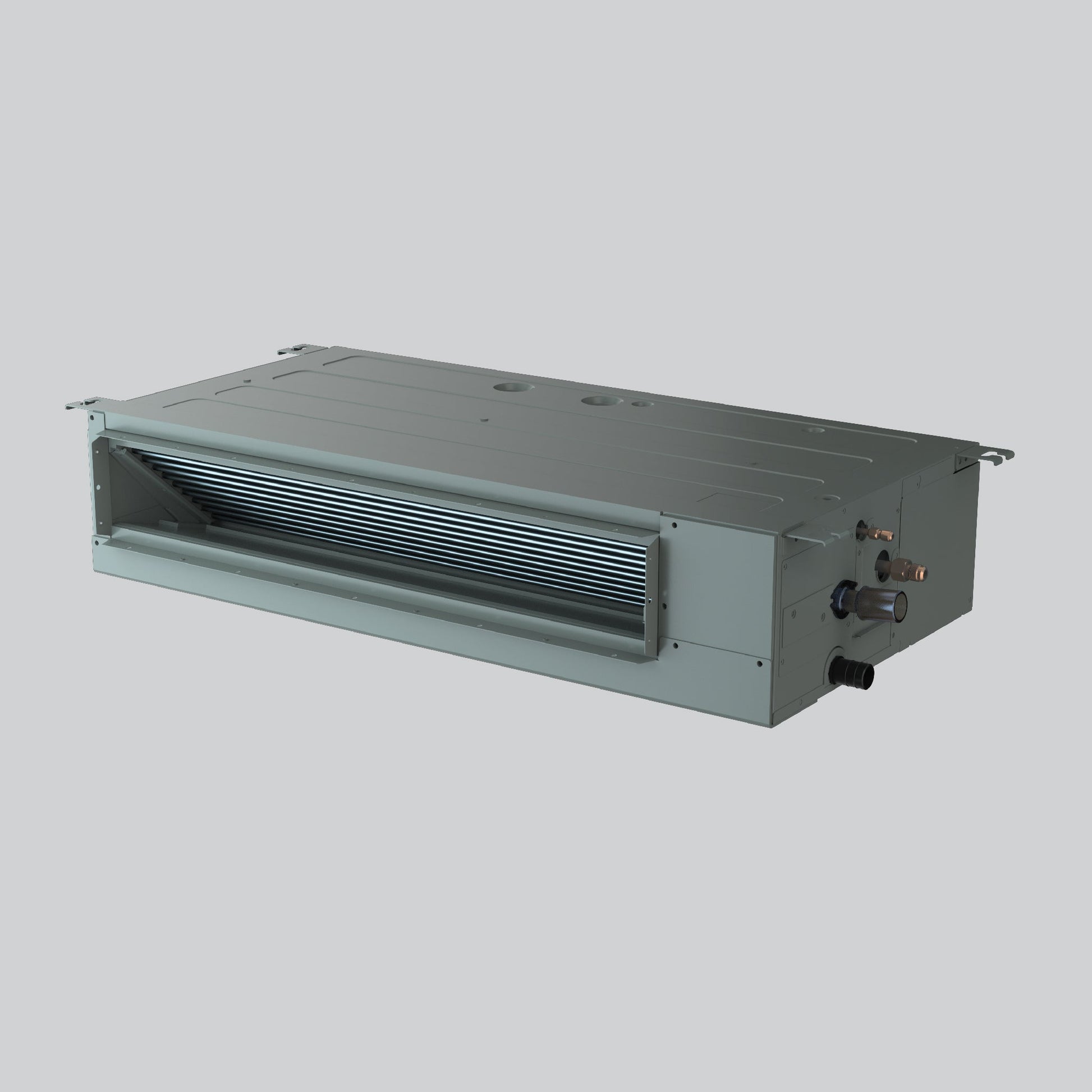

Ducted Type
Model |
ASLEK4H4S09 |
Voltage/ Frequency/ Phase |
208/230V - 60Hz - 1 phase |
Cooling Capacity |
9000 |
Heating Capacity | 9000 |
Watts | 2638 |
Amperage | 0.25 |
Indoor Unit Dimensions | 35-7/8" x 7-7/2" x 17-1/2" |
Lineset Size | 1/4" & 3/8" |
12K INDOOR UNITS
12,000 BTU COMPATIBLE UNITS
Wall Mounted
![INDOOR_9K](https://cdn.shopify.com/s/files/1/0504/8985/2083/files/INDOOR_9K-05_a97949df-6da5-4529-9f96-cb5f8315821f_480x480.png?v=1612533621)
Model |
ABXEM4H4S12 |
Voltage/ Frequency/ Phase |
208/230 - 60 Hz - Single Phase |
Cooling Capacity | 12000 |
Heating Capacity | 12000 |
Watts | 3517 |
Amperage | 0.11 |
Unit Dimensions | 37-3/8" x 10-3/4" x 8-1/8" |
Lineset Size |
1/4" & 3/8" |
Ceiling Cassette
![INDOOR_CASSETTE_12K](https://cdn.shopify.com/s/files/1/0504/8985/2083/files/INDOOR_CASSETTE_12K-08_480x480.png?v=1612537454)
Model |
ASLEC4H4S12 |
Voltage/ Frequency/ Phase |
208/230V - 60Hz - 1 phase |
Cooling Capacity | 12000 |
Heating Capacity | 12000 |
Watts | 3517 |
Amperage | 0.25 |
Indoor Unit Dimensions | 22 7/16" x 8 7/16" x 22 7/16" |
Lineset Size | 1/4" & 3/8" |
Ducted Type
![INDOOR_DUCTED_9K](https://cdn.shopify.com/s/files/1/0504/8985/2083/files/INDOOR_DUCTED_9K-11_bbb60228-035c-4129-8520-d8f71b0bdaac_480x480.png?v=1612538503)
Model |
ASLEK4H4S12 |
Voltage/ Frequency/ Phase |
208/230V - 60Hz - 1 phase |
Cooling Capacity | 12000 |
Heating Capacity | 12000 |
Watts | 3517 |
Amperage | 0.25 |
Indoor Unit Dimensions | 35-7/8" x 7-7/16" x 17-1/2" |
Lineset Size | 1/4" & 3/8" |
WARRANTY
Warranty Details
For our full details, please visit the Air-Con International Warranty Information page.
Already purchased our product and would like to register your unit? Please visit our Warranty Registration page.
WARNING: California Proposition 65
** This unit's AHRI Reference Number is 205150432.
